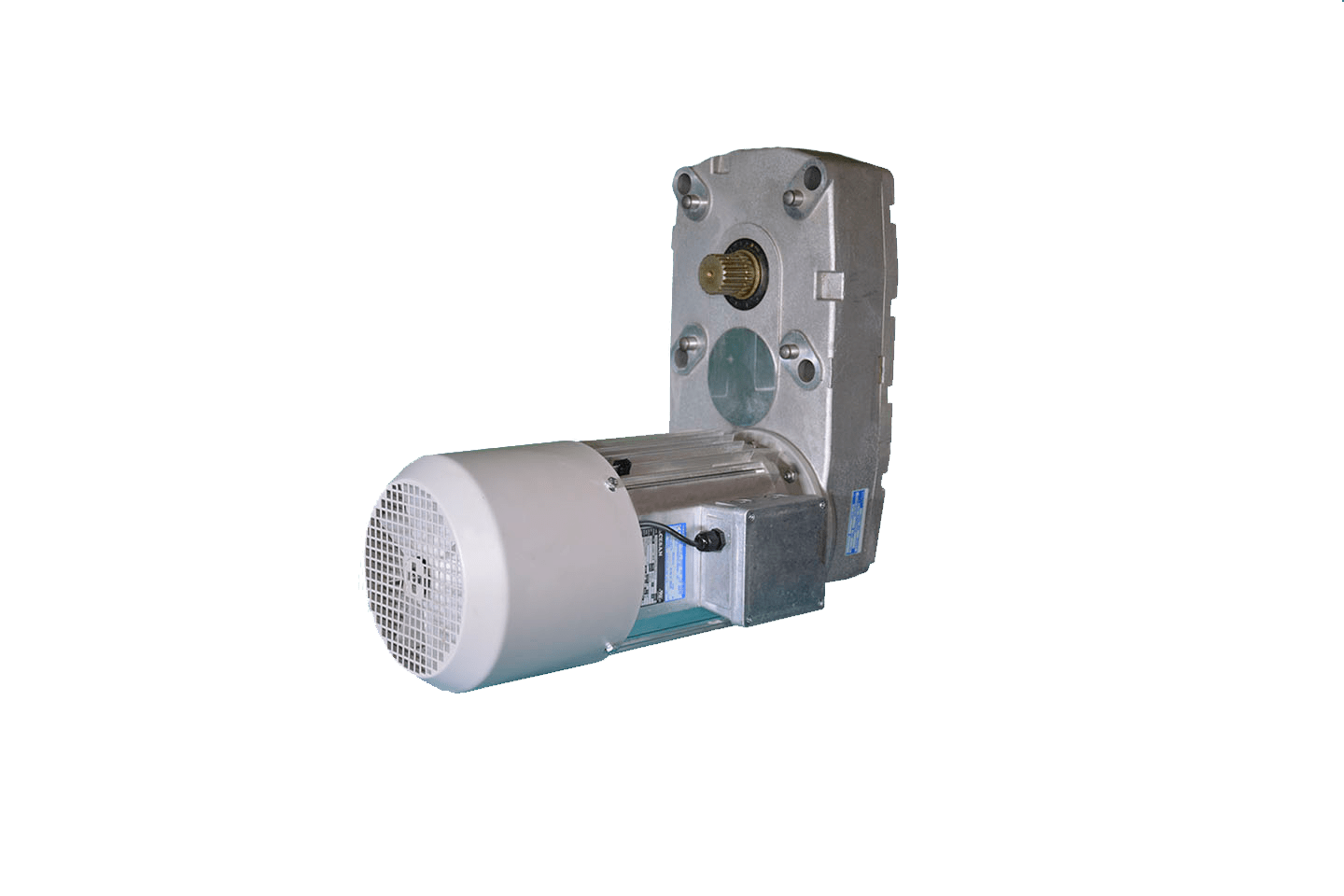

GEAR BOX
• GGG50 Cast Iron or Aluminium Body
• 0,5T-120T lifting weight capacity
• ABM branded German advanced technology
• High precision finished gears
• Silent operation

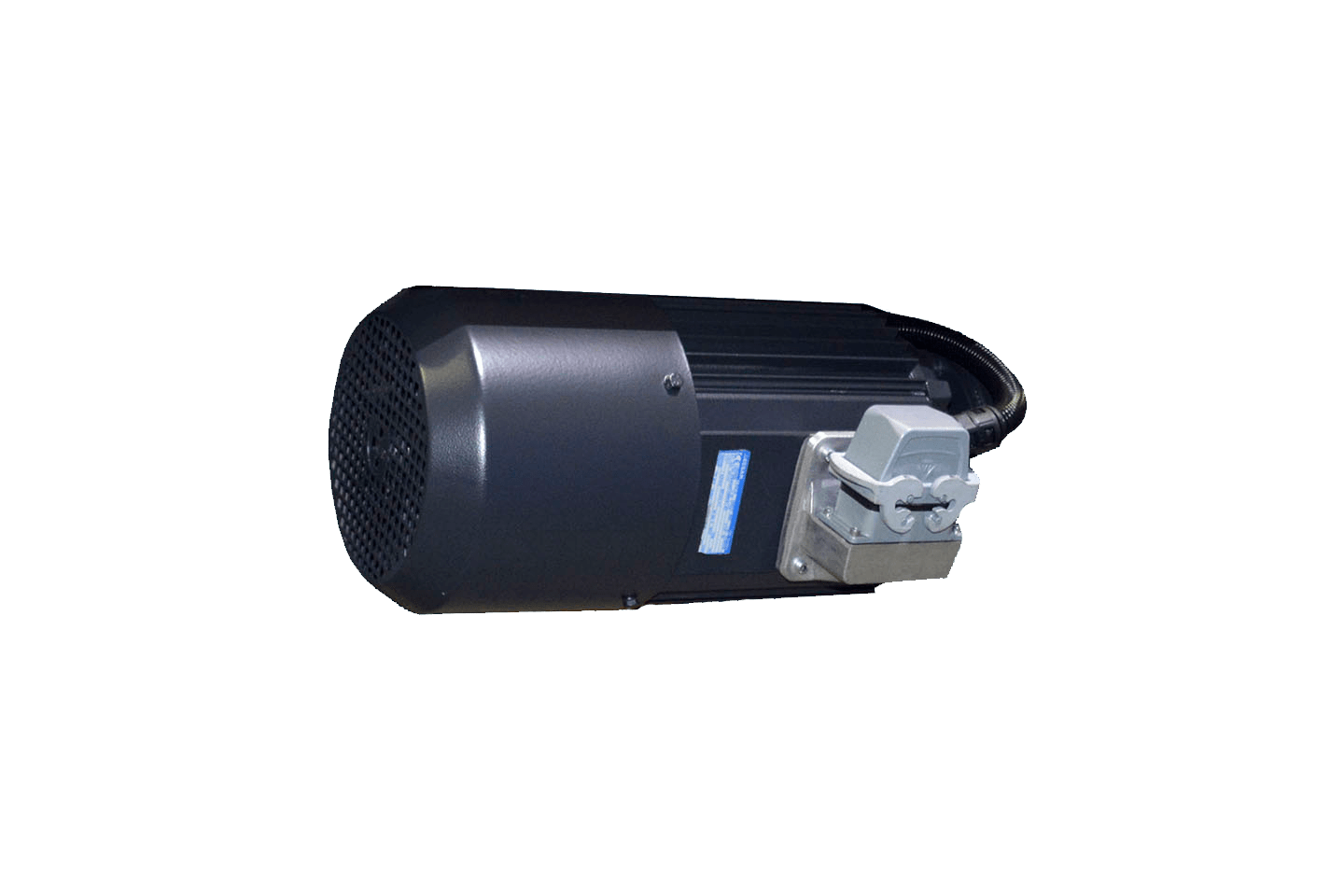

MOTOR
• 8/2 and 12/2 poles double speed selection
• ABM branded German advanced technology
• Standard plug and play connection
• PTC Thermistor and heat sensor
• 1,8 – 38 kW power range
• F class isolation

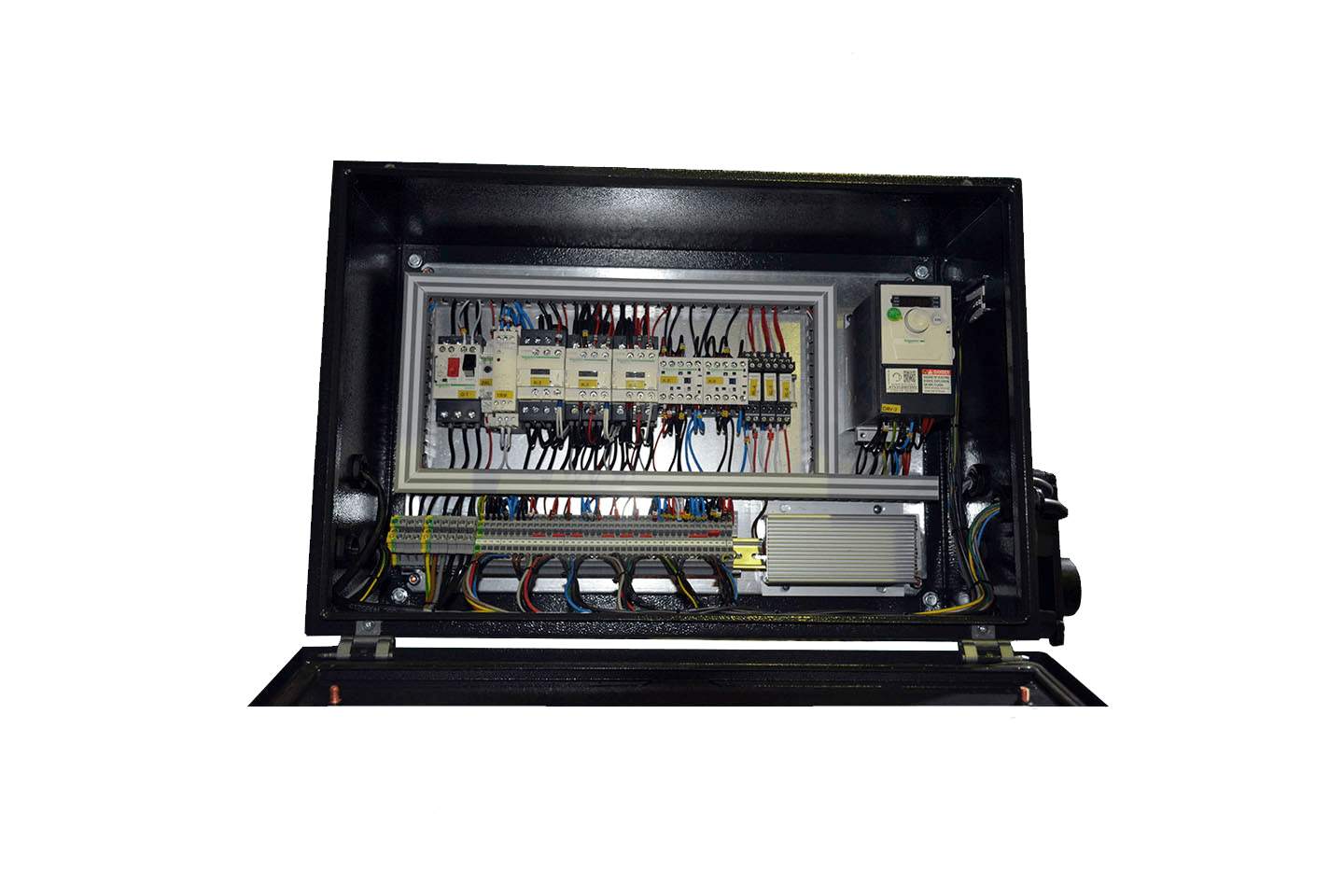

ELECTRICAL PANEL
• IP55/IP65 protection
• Residual current isolation test
• Schneider brand electrical components
• PLC and special app. softwares
• Inverter for travelling motors
• 48V Control voltage
DRUM
• Designed according to DIN 15020
• Precision machining by CNC C Axis
• Produced by ST52 drawn steel pipe
ROPE AND ROPE GUIDE
• Spring mechanism to prevent the loosen wire rope
• PHYTON German branded advanced technology
• Min. breaking load 2160N/mm2
• Compact design for hoist
• Long life wire rope
• GGG50 Cast Iron
HOOK BLOCK
• Designed according to DIN15401/1402
• Safety latch as standard
• 360˚ swivelling hook
• Hot-forging hook
GEAR LIMIT SWITCH
• Up-Down limit adjustment of hook block
• Connection is made by special balance coupling
• Mounted directly to the drum shaft
TRAVELLING LIMIT SWITCHES
• Soft start-stop (Non-impact)
• 2 Step limit switch (Slow+Stop)
OVERLOAD PROTECTION (LOADCELL)
• Prevention system for the loosen wire rope
(Slack Rope)
• High precision load control
• Overload protection
• Load display screen (0,5 Inch screen)
BRAKE
• Long life working period and low maintenance cost
• ABM-German branded advanced technology
• Min. 2,5 times more brake safety
• 1.000.000 triggering time
• Electromagnetic disc brake
WHEELS
• Single girder idle and drive wheels
• Double girder idle and drive wheels
• GGG70 Cast Iron / 42CrMo4 Steel material
• Hardened steel wheels

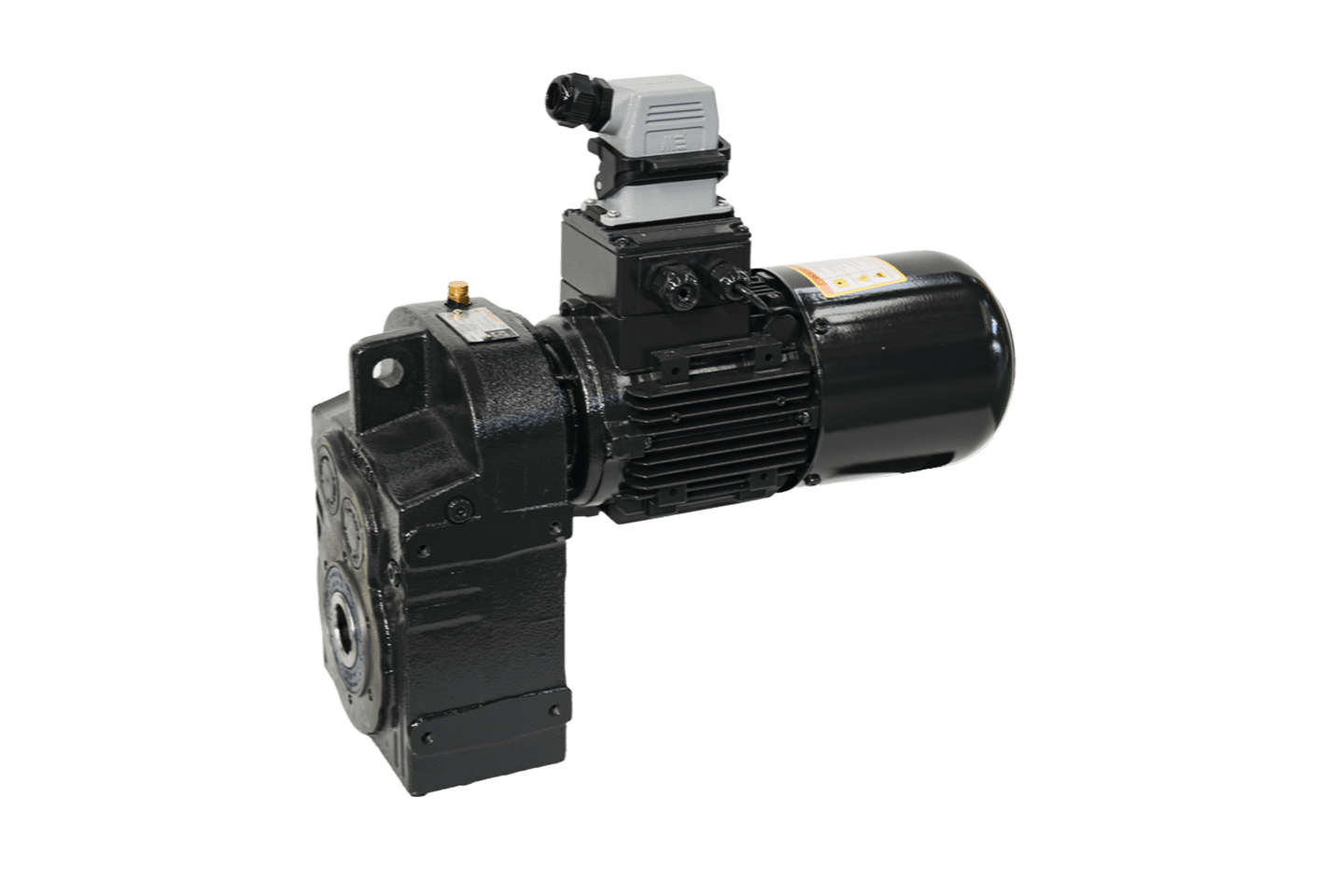

TRAVELLING MOTOR AND GEARBOX
• Frequency inverter controled
• Soft start stop
• Silent operation
• Electromagnetic disc brake
PENDANT
• IP65 Protection
• 2,4,6,8 and 12 button selection
• Emergency stop button
• Compact and robust design

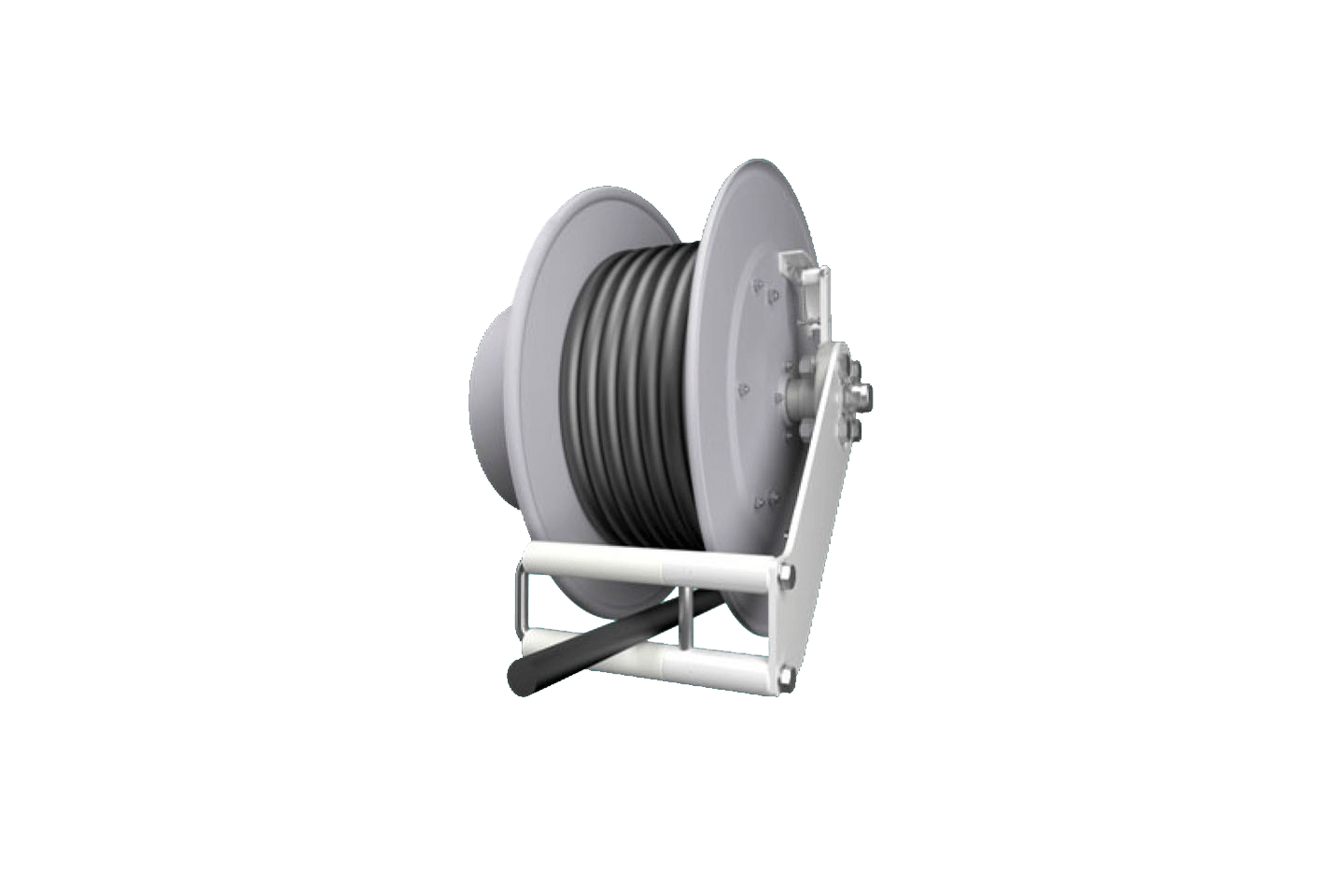

CABLE REELING DRUM
Cable reeling drum serves as reliable energy and data transfer systems for the right winding of flexible cables, hoses or ropes. They are 2 types which are spring and motorized cable reeling drum.
LOAD DISPLAY
• IP65 Protection
• Load display screen (3 Inch screen)
• Indoor / Outdoor usage
• Compact and robust design
PROJECTOR
• IP65 Protection
• LED flood light
• Energy saving
• 100W
Hoist Components
Our standard components that create the hoist and their technical features:
| STANDARD SPECIFICATIONS | OPTIONAL SPECIFICATIONS |
| Double speed, speed control | Double speed or Stepless speed control (Inverter controlled) |
| Up/Down limit switch with (Slow-Stop) | IP65 protection for hoisting motor |
| Phase mismatch protection | Button or Joystick radio remote control |
| Overload switch (Loadcell) | 3-phase voltages 440/460/480 V 60 Hz |
| Load Display screen (0,5 inch screen) | External fan for motors |
| Thermal protection for hoisting | Standby heating for bridge panels and motors |
| 3-phase voltages 380/400/415 V 50 Hz | Articulated trolley for curved track |
| 48 VAC Control voltage | Ambient temperature -20°C… +55°C |
| IP 55 motor protection | Rain cover |
| Electrical assembly and wiring in accordance with IEC standards | Lockable hook |
| Robust rope guide made of cast iron | Ramshorn hook |
| Ambient temperature -10°C…+40°C | Encoder |
| 70dB Noise level | PLC control |
| IP65 control pendant with plug and Emergency-Stop | Load display (3 inch screen) |
| Casting or Steel material wheels | Cable reeling drum and more |
